YVO4 Crystal Case (1)

  • Product name: YVO4
  • Product size: 3*3*30mm/3*3*20mm
  • Film system: Double-sided AR@1850-2550nm

Customer Demand

Trade Name Specification/mm Remark
YVO4 3*3*30mm Direction: a-cut

Coating: Double-sided AR@1850-2550nm
YVO4 3*3*20mm Direction: a-cut

Coating: Double-sided AR@1850-2550nm

Processing index:

  • Orientation Tolerance: < 0.5°
  • Thickness/diameter tolerance: ±0.10 mm
  • Surface shape (flatness): <(λ/2-λ/4)@632nm
  • Wavefront Distortion: <(1-2)λ@632nm
  • Surface finish: 60/40
  • Parallelism: 1ˊ
  • Verticality: 30ˊ
  • Clear Aperture: >90%
  • Chamfering: <0.2×45°

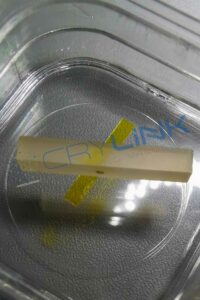

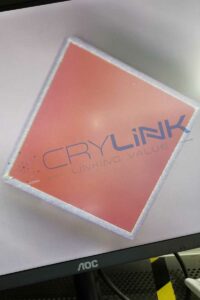

Picture of Shipment

YVO4 YVO4

If you are intereted in YVO4 Crystal Case (1), please click the button below to enquire or ask for a samplel.
