Yb:CaF2 crystal case (1) – 3*3*4 mm

  • Product name: Yb:CaF2
  • Product size: 3*3*4 mm
  • Film system: /

Customer Demand

Trade Name Specification/mm  Remark
Yb:CaF2 3*3*4 mm Coating S1/S2:

AR(R<0.15%)@1035-1055nm+AR(R<0.5%)

@ 980 nm, AOI = 0°

With a 1 deg wedge

Processing Index:

Material: Yb:CaF2 crystal

Doping level: 5%

Dimension,mm: 3×3(+0/-0.05) mm2

Thicnkess, mm: 4(±0.1) mm

Orientation: [111] +/-0.1°

2-side polished on 3×3 mm2

Parallelism: <10”

Perpendicularity : <5′

Flatness: λ/10@633nm

Surface quality:

20/10(MIL-O-13830A) after coating

Wavefront distortion: λ/8@633nm

Coating S1/S2:

AR(R<0.15%) @1035-1055nm+AR(R<0.5%)@ 980 nm, AOI = 0°

With a 1 deg wedge

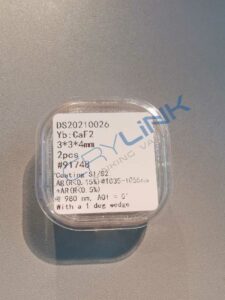

Picture of Shipment

Yb-CaF2 Yb-CaF2 Yb-CaF2

If you are intereted in Yb:CaF2 crystal case (1) – 3*3*4 mm, please click the button below to enquire or ask for a samplel.

Inquiry/Sample
