LiF window case (2) – 1.2*0.4*0.1mm/1.2*0.9*0.1mm

  • Product name: LiF window
  • Product size: 1.2*0.4*0.1mm/1.2*0.9*0.1mm
  • Film system: /

Customer Demand

Trade Name Specification/mm Remark
LiF windows 1.2*0.4*0.1mm (100) crystal orientation, double throw
LiF windows 1.2*0.9*0.1mm (100) crystal orientation, double throw

Processing Index:

Dimensional tolerance: ±0.02mm;

Thickness: 100um±20um;

Thickness uniformity: ≤1um;

Surface roughness: ≤100nm;

Crystal plane angle deviation: ≤0.2°;

Face shape: <lamda/4;

Chipping: <0.01mm;

Columnar crystals cannot be used; lattice defects should be minimized.

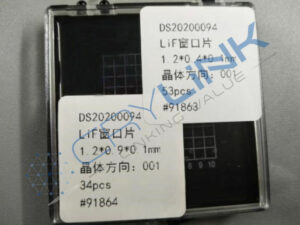

Picture of Shipment

LiF LiF
