I. The Role and Significance of Rare-Earth Doped Crystals
The advent of rare-earth doped crystals like Neodymium-doped Yttrium Aluminum Garnet (Nd:YAG), Erbium-doped Yttrium Aluminum Garnet (Er:YAG), and Ytterbium-doped Yttrium Aluminum Garnet (Yb:YAG) have remarkably transformed the technological landscape. These exceptional materials, infused with unique attributes, are not just paving the way for innovation, but are reshaping the way we perceive and manipulate the world around us.
The heart of their significance lies in the rare-earth elements themselves—unique metals that, when utilized in doped crystals, can manipulate and amplify light in ways that are impossible for conventional materials. The rare-earth elements, when embedded into the crystal structure, offer a wide range of emission wavelengths, exceptional thermal properties, and high damage thresholds. These properties make the resulting doped crystals invaluable in a range of applications, particularly in the field of laser technology.
Their role extends to various sectors. From industrial processes like cutting, drilling, and welding, where their robustness and versatility shine, to delicate medical procedures that demand precision and minimized thermal damage—rare-earth doped crystals are providing groundbreaking solutions.
As we stand at the cusp of technological advancement, the exploration of the rare-earth doped crystals and their unique properties becomes crucial. Unleashing their full potential could provide the key to unlocking a future where technological boundaries continue to stretch, powered by these remarkable materials.
II. Delving into the Unique Properties
II.1. Nd:YAG Crystals: A Fusion of Robustness and Versatility
The Nd:YAG crystals are renowned for their outstanding endurance and adaptability. Their high thermal conductivity and impressive damage threshold are integral to their durability, a crucial requirement in their broad application scope. These crystals can efficiently manage heat and withstand high-power densities, factors that are paramount in applications such as industrial lasers. Furthermore, their four-level energy system reduces waste heat, enhances energy efficiency, and facilitates low-threshold lasing. Their ability to emit laser light at various wavelengths, from infrared to green and ultraviolet light, amplifies their adaptability, thus extending their use in diverse fields from manufacturing to medical procedures.

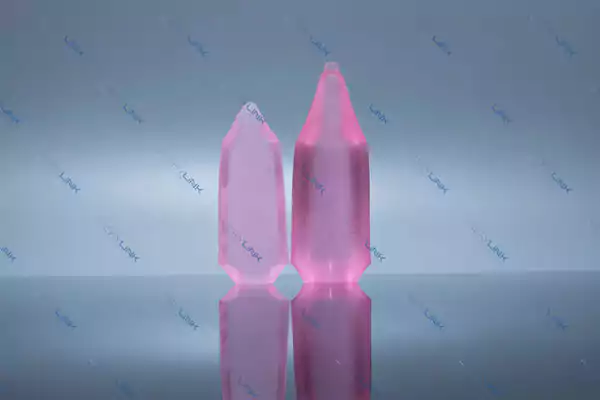

II.2. Er:YAG Crystals: Harnessing the Power of Mid-Infrared Range
Er:YAG crystals have a distinct edge with their emission in the mid-infrared range at 2.94 µm. This characteristic has profound implications, particularly in the medical field, where the crystals’ energy is rapidly absorbed by water in biological tissues. This rapid absorption allows for precise cutting and minimal thermal damage, an attribute that is leveraged in soft tissue medical procedures. Furthermore, the capacity of Er:YAG crystals to generate short pulses expands their usage in applications demanding tight control, such as dermatology and aesthetic treatments. Their low quantum defect and high efficiency further broaden their application potential.
II.3. Yb:YAG Crystals: The Exemplar of Laser Host Crystals
The Yb:YAG crystals are hailed as the epitome of laser host materials due to their advantageous characteristics. Their simple two-level electronic structure eliminates unnecessary energy losses, which enhances the overall efficiency of lasers based on Yb:YAG. These crystals also boast a wide absorption bandwidth, making them compatible with diverse pump sources and thereby extending their utility in various applications. The Yb:YAG crystals’ high thermal conductivity, low quantum defect, and extended upper-state lifetime give them an edge in high-power operations, where effective heat management and high peak power outputs are indispensable.
III. Unveiling the Multifaceted Applications
III.1. Nd:YAG Crystals: Empowering Industrial Lasers and Medical Innovations
The versatility of Nd:YAG crystals manifests in various industries, notably in industrial laser applications and medical innovations. In industrial manufacturing, these crystals find usage in laser cutting, welding, and drilling, largely due to their high-power density handling capacity and robustness. This also extends to the defense sector for laser-based weaponry and range-finding. The medical field harnesses the crystals’ ability to produce various wavelengths, facilitating different medical treatments. For example, their green light is used in ophthalmology for retinal photocoagulation, while the infrared light finds utility in laser hair removal and photodynamic therapy.
III.2. Er:YAG Crystals: Revolutionizing Dermatology and Dentistry
Er:YAG crystals, with their specific emission at 2.94 µm, have caused waves of innovation in the field of dermatology and dentistry. Their precise cutting capability and minimal thermal damage make them ideal for skin resurfacing procedures, treating various skin conditions, and aesthetic treatments like wrinkle and scar reduction. In dentistry, they have revolutionized tooth cleaning, cavity preparation, and periodontal treatments, providing a more comfortable and precise treatment experience for patients compared to traditional drills.
III.3. Yb:YAG Crystals: Facilitating High-Powered Laser Applications
The high power operation capability of Yb:YAG crystals has enabled their use in diverse high-powered laser applications. They’re primarily used in solid-state laser systems like disk and fiber lasers, owing to their high thermal conductivity and peak power outputs. In industrial applications, these lasers facilitate precise cutting, welding, and marking, owing to their efficiency and high beam quality. Furthermore, their application extends to research applications where high power and high energy pulses are required, as in particle acceleration and nuclear fusion experiments.
IV. The Horizon: Future Opportunities for Rare-Earth Doped Crystals
IV.1. The Green Energy Potential of Nd:YAG Crystals
Nd:YAG crystals hold significant potential for contributing to green energy solutions. Research is being conducted on using these crystals in high-precision, high-power solar concentrators. Their inherent ability to concentrate sunlight and convert it into laser light has promising applications in solar energy collection and storage, making them a potential game-changer in our pursuit of sustainable energy alternatives.
IV.2. Er:YAG Crystals: A Prospective Trailblazer in Advanced Medical Solutions
Er:YAG crystals, known for their precise cutting capabilities and minimal thermal damage, are expected to trailblaze new frontiers in advanced medical solutions. Potential applications range from non-invasive surgeries to targeted cancer treatments. With ongoing research, the future might unveil Er:YAG lasers for novel treatments like precise tissue ablation in hard-to-reach areas, contributing significantly to advancements in minimally invasive surgeries.
IV.3. Yb:YAG Crystals: Deciphering More Potential in High-Power Operations
The high-power operation capability of Yb:YAG crystals might play an essential role in future high-power applications, especially in the field of advanced manufacturing and scientific research. Their potential in developing next-generation high power and energy-efficient lasers could transform industries, from materials processing to defense. Additionally, they might hold the key to significant advances in scientific research areas requiring high-energy pulses, like particle physics, astrophysics, and nuclear fusion research.
V. Recapitulation and Future Perspectives
This comprehensive exploration into the realm of rare-earth doped crystals, particularly Nd:YAG, Er:YAG, and Yb:YAG crystals, has illustrated their distinct characteristics, wide-ranging applications, and future potential. Each of these crystals, through their unique properties, has significantly influenced diverse fields from industry to medicine.
Nd:YAG crystals have proven their robustness and versatility, powering industrial lasers and medical innovations. The Er:YAG crystals’ capacity to harness the mid-infrared range has revolutionized dermatology and dentistry. Yb:YAG crystals, exemplifying the best features of laser host crystals, facilitate high-powered laser applications.
Looking towards the future, these crystals hold tremendous potential. From green energy solutions with Nd:YAG crystals to Er:YAG’s prospective role in advanced medical solutions, and the untapped high-power operations potential in Yb:YAG crystals, these crystals are at the forefront of many research initiatives. As the scientific community continues to decipher the full potential of these remarkable materials, rare-earth doped crystals are poised to redefine our understanding and applications of laser technology.
Frequently Asked Questions
- 1.What are the unique properties of Nd:YAG crystals?
Nd:YAG crystals offer high thermal conductivity, mechanical strength, and damage threshold. They are suitable for high-power operations due to their four-level energy system. - 2.Why are Er:YAG crystals used in medical and dental procedures?
Er:YAG crystals have a high absorption rate in water, allowing precise tissue ablation. This minimizes damage to surrounding areas, making them effective in skin resurfacing and dental treatments. - 3.What makes Yb:YAG crystals ideal for high-power lasers?
Yb:YAG crystals exhibit high thermal conductivity and a low quantum defect, making them perfect for high-power lasers. They find applications in materials processing, including welding and cutting, high-speed imaging, and spectroscopy. - 4.What is the future of rare-earth doped crystals?
The future lies in discovering more potential applications. For instance, rare-earth doped crystals could potentially be used in solar concentrators, improving efficiency in harnessing solar power. - 5.Why are rare-earth doped crystals important in technological advancements?
The unique properties and diverse applications of rare-earth doped crystals, such as Nd:YAG, Er:YAG, and Yb:YAG, contribute significantly to advancements in technology, particularly in the fields of laser technology, medical and dental procedures, and high-power lasers.
Frank
Frank graduated from the University of Shanghai for Science and Technology, majoring in optics. As a technical engineer at Crylink Company, he deeply understands crystal materials and laser components.
